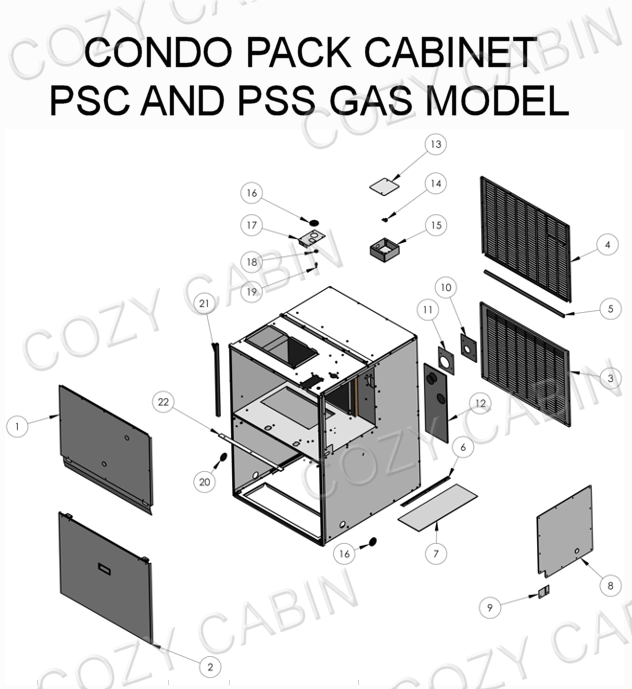

MAIN ASSEMBLY
Item Description (Part Number) 1 Top Door (W010-0001-SER) +$Call to Order QTY: 2 Bottom Door (W010-0002-SER) +$354.45 QTY: 3 Grille - Lower (W305-0010-SG1SP) +$184.29 QTY: 3 Grille - Lower (W305-0010-TP1SP) +$185.83 QTY: 4 Grille - Upper (W010-3784-SG1SP) +$198.11 QTY: 4 Grille - Upper (W010-3784-TP1SP) +$198.11 QTY: 5 Gasket D Channel [4 ft per package] (W290-0256-SER) +$41.99 QTY: 6 Guide Furnace Lower (W525-0054) +$27.88 QTY: 7 Insulation 1/4 Inch Thermal Maniglass (W290-0312) +$27.88 QTY: 8 Panel - Furnace Side Access (W475-0947-TP1SP-SER) +$201.18 QTY: 9 Cover - Side Access (W200-0537-TP1SP) +$13.94 QTY: 10 Gasket - Intake/Exhaust (W290-0321) +$31.24 QTY: 11 Flashing - Intake/Exhaust (W263-0204) +$Call to Order QTY: 12 Gasket - Foil Faced Ext. Wall (W290-0313) +$26.20 QTY: 13 Electrical Box Lid (W350-0738) +$15.62 QTY: 14 Ground Lug (W670-0525) +$13.94 QTY: 15 Electrical Box Housing (W350-0732) +$46.79 QTY: 16 Grommet 0.775 Inch I.D. [2 per unit, each sold separately] (W315-0006) +$10.58 QTY: 17 Bracket - Gas Pipe (W080-1387-TP1SP) +$34.93 QTY: 18 Grommet 3/8 Inch I.D. (W315-0018) +$8.90 QTY: 19 Fitting 3/16 Inch Hose Barb (W255-0045) +$13.94 QTY: 20 Cap 1-5/8 Inch Gas Inlet (W120-0067) +$8.90 QTY: 21 Gasket D-Channel 3/4 Inches X 3/4 Inches x 2 Feet (W290-0276-SER) +$61.86 QTY: 22 Insulation - Front Panel Seal 1/8 Inches FFM (W290-0315) +$10.58 QTY:
ITEMS NOT SHOWN - MAIN ASSEMBLY
Item Description (Part Number) 23 1 Inch Clear Window Lense (W397-0002) +$8.90 QTY: 24 Handle, Drip (N325-0080) +$13.80 QTY: 25 Latch - Push/Pull Snap (W390-0025) +$34.60 QTY: 26 1/2 Inch Wide Strip Gasket [10 ft per package] (W290-0176-SER) +$Call to Order QTY: 27 Caulking Roll 1/16 X 3/4 [6 Inches per package] (W573-0009-SER) +$63.46 QTY: 28 Owners Manual [hard copy] (OMHC-N) +$9.99 QTY: 29 Owners Manual [electronic copy] (OMEL-N) +$0.00 QTY:
|
