Item Description (Part Number) 1- NAPOLEON LOGO (W385-2010) +$43.15 QTY:
GLASS/GASKET/DOOR
Item Description (Part Number) 2- GLASS WITH GASKET (W010-1071) +$262.55 QTY: 2A- GLASS GASKET (W020-0050) +$64.70 QTY: 3- DOOR GASKET ~Old Part # W020-0043~ (W020-0044) +$133.41 QTY: 4- DOOR HANDLE - SATIN CHROME (W325-0033) +$39.26 QTY: 4A- DOOR HANDLE (W325-0018-SER) +$75.84 QTY: 5- AIR CONTROL HANDLE - SMALL -SATIN CHROME (W325-0032) +$31.14 QTY: 5A- AIR CONTROL HANDLE - SMALL - BLACK (W325-0042) +$31.46 QTY: 5B- SPRING HANDLE - DAMPER ROD [SMALL, BLACK] (W385-0042) +$Call to Order QTY: 5C- DAMPER ROD LABEL [HIGH/LOW] (W385-0312) +$83.27 QTY:
ITEMS NOT SHOWN - GLASS/GASKET/DOOR
Item Description (Part Number) 30- RETAINER, GLASS - UPPER (W160-0077) +$37.31 QTY: 31- RETAINER, GLASS - LOWER (W500-0075) +$11.21 QTY: 323- SIDE GLASS SUPPORT [2 per unit, each sold separately] (W500-0614) +$33.41 QTY: 33- SCREW FOR DOOR GLASS RETAINERS [5 per unit, each sold separately] (W570-0085) +$31.14 QTY: 34- LATCH - DOOR HANDLE (W320-0002) +$33.41 QTY: 35- DOOR HANDLE COMPLETE ASSEMBLY [NO SPRING HANDLE] (W020-0078) +$109.27 QTY: 36- HINGE PIN - DOOR (W485-0027) +$45.43 QTY:
ENAMELLED CAST PARTS
Item Description (Part Number) 6- CAST ASH LIP - PAINTED (W135-0278) +$202.02 QTY: 6A- CAST ASH LIP - PORCELAIN BROWN MAJOLICA (W135-0278N) +$197.03 QTY: 7- CAST DOOR - METALLIC BLACK (W135-0279) +$420.12 QTY: 8- CAST SIDE -PAINTED [2 REQUIRED] (W135-0443) +$271.39 QTY: 8A- CAST SIDE - PORCELAIN BROWN MAJOLICA [2 per unit, each sold separately] (W135-0443N) +$499.28 QTY: 9- CAST TOP - PAINTED (W135-0442) +$408.13 QTY: 9A- CAST TOP - PORCELAIN BROWN MAJOLICA (W135-0442N) +$588.40 QTY: 10- CAST LEGS - METALLIC BLACK [4 per unit, each sold separately] (W135-0280) +$102.83 QTY: 10A- CAST LEGS - PORCELAIN BROWN MAJOLICA [4 per unit, each sold separately] (W135-0280N) +$137.36 QTY:
ITEMS NOT SHOWN - ENAMELLED CAST PARTS
Item Description (Part Number) 37- CAST DOOR FRAME - PORCELAIN BROWN MAJOLICA (W135-0279N) +$574.61 QTY: 38- SCREW - BOTTOM SIDE CAST [2 per unit, each sold separately] (W570-0007) +$39.26 QTY: 39- WASHER - BOTTOM SIDE CAST [2 per unit, each sold separately] (W7350011) +$Call to Order QTY: 40- SCREW - TOP SIDE CAST- HORIZONTAL SCREWS [2 per unit, each sold separately] (W570-0082) +$31.46 QTY: 41- WELD NUT SIDE CAST TOP - HORIZONTAL WELD NUTS [2 per unit each sold separately] (W450-0024) +$31.14 QTY: 42- SCREW SIDE CAST TOP - VERTICAL SCREW [4 per unit, each sold separately] (W570-0040) +$29.35 QTY: 43- NUT - FLUE COLLAR [2 per unit, each sold separately] (W450-0001) +$31.46 QTY: 44- PORCELAIN TOUCH UP PAINT - BROWN MAJOLICA (161025) +$169.98 QTY:
BRICK/FIREBOX COMPONENTS

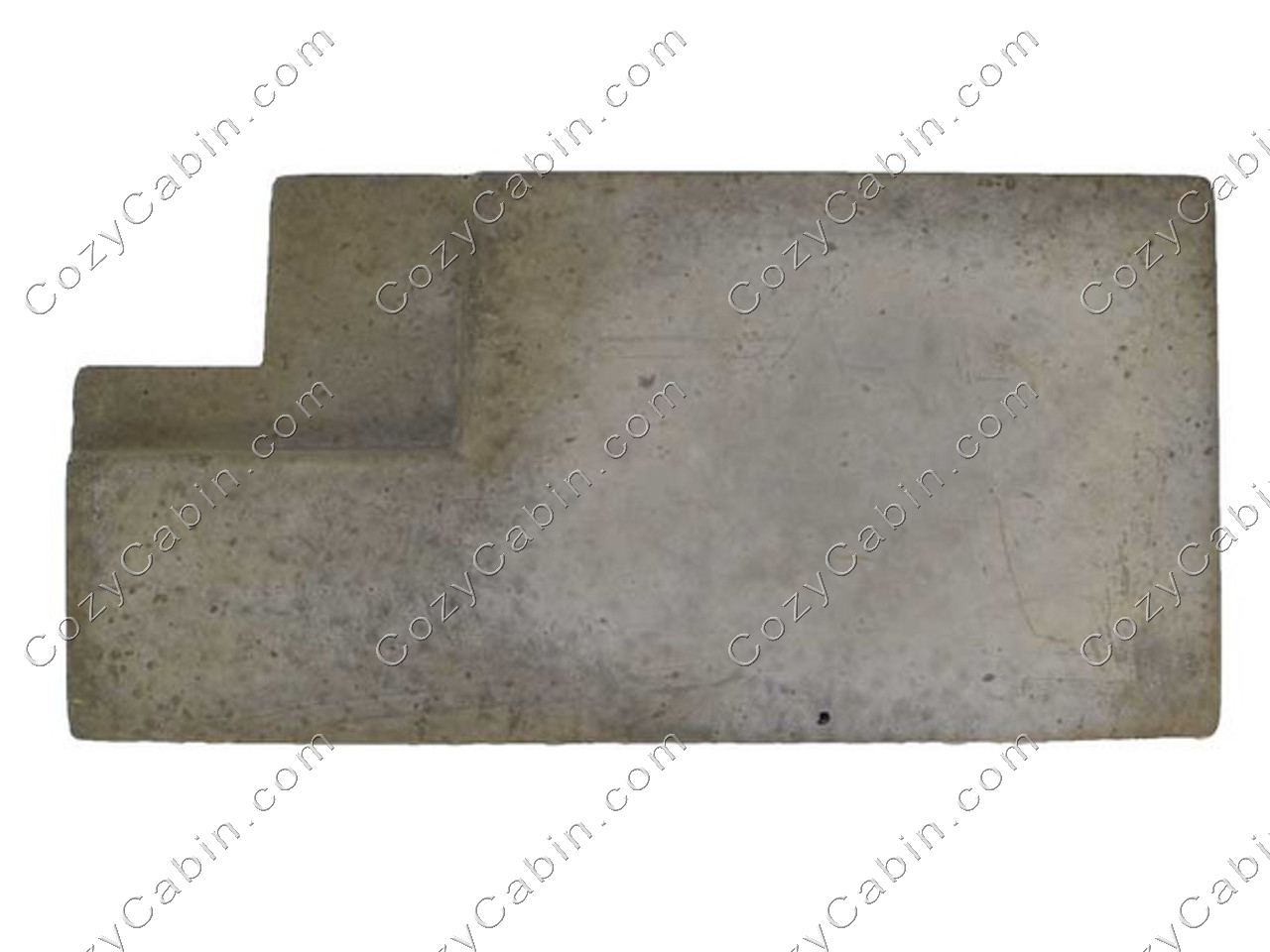

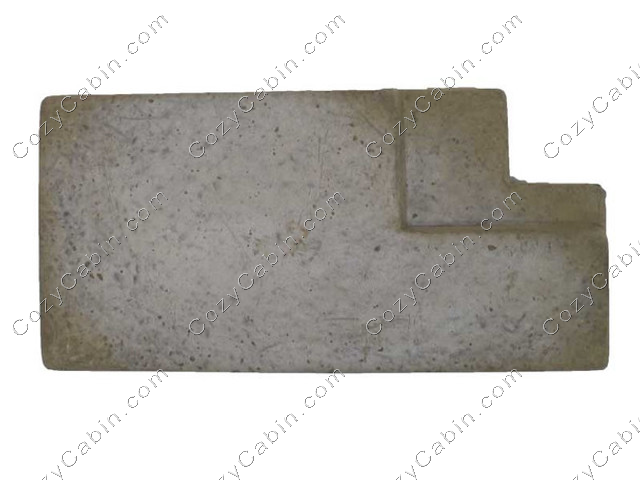

Item Description (Part Number) 11- BRICK [1.25 INCHES X 9 INCHES X 4.5 INCHES] [9 per unit, each sold separately] (W090-0001) +$37.31 QTY: 12- BRICK [1.25 INCHES X 9 INCHES X 3 INCHES] [2 per unit, each sold separately] (W090-0002) +$45.10 QTY: 13- BRICK [1.25 INCHES X 9 INCHES X 3 INCHES] [2 per unit, each sold separately] (W090-0166) +$50.95 QTY: 14- LEFT SIDE NOTCHED FIREBRICK [1.25 INCHES X 4.5 INCHES X 9 INCHES] (W090-0207) +$52.90 QTY: 15- RIGHT SIDE NOTHCED FIREBRICK [1.25 INCHES X 4.5 INCHES X 9 INCHES] (W090-0208) +$52.90 QTY: 16- BRICK [1.25 INCHES X 9 INCHES X 2.25 INCHES] (W090-0018) +$41.21 QTY: 17- BRICK [1.25 INCHES X 6.125 INCHES X 2.25 INCHES] (W090-0019) +$38.28 QTY: 18- BRICK [1.25 INCHES X 4.5 INCHES X 2.5 INCHES] (W090-0016) +$47.05 QTY: 19- BRICK [1.25 INCHES X 4.5 INCHES X 1.5 INCHES] (W090-0017) +$52.90 QTY: 20- BRICK [1.25 INCHES X 4.5 INCHES X 8.25 INCHES] [12 per unit, each sold separately] ~Old Part # W090-0184~ (W090-0210) +$23.15 QTY: 21- BRICK SET COMPLETE (W580-0002) +$725.84 QTY: 22- FIBRE BAFFLE SET ~Old Part # W010-3560~ (W010-3561) +$257.21 QTY: 23- AIRWASH GASKET AND SHIELD (W010-0347) +$124.12 QTY: 24- ASH OPENING GASKET (W290-0087) +$34.71 QTY: 25- MANIFOLD (W432-0144) +$244.60 QTY: 26- MANIFOLD GASKET ~Old Part # W290-0219~ (W290-0010) +$37.31 QTY:
ITEMS NOT SHOWN - BRICK/FIREBOX COMPONENTS
Item Description (Part Number) 45- BRICK RETAINER - REAR (W500-0076) +$43.80 QTY: 46- SCREW - FOR MANIFOLD AND SHIELD (W570-0058) +$31.46 QTY: 47- SCREW - FOR MANIFOLD AND SHIELD [2 per unit, each sold separately] (W570-0007) +$39.26 QTY: 48- MANIFOLD SHIELD AND SCREWS (EP-14MS) +$186.00 QTY:
MISCELLANEOUS PARTS
Item Description (Part Number) 27-FAN (GZ552) +$417.43 QTY: 28- VARIABLE SPEED SWITCH (KB-35) +$99.98 QTY:
ITEMS NOT SHOWN - MISCELLANEOUS PARTS
Item Description (Part Number) 49- ASH DRAWER ASSEMBLY (W010-2203) +$244.75 QTY: 50- ASH PAN HANDLE [BLACK] (W325-0028) +$49.00 QTY: 51- ASHWELL SPRING (W630-0004) +$52.90 QTY: 52- INSTRUCTION MANUAL - LEG MODELS (W415-0762) +$40.63 QTY:
|
